Powertip PG 12864-K graphic display

PG-12864-K WRM-KNN-I-L3 is a blue graphic LCD display 128x64 points with white LED backlight. It is very popular, ideal for applications requiring modern fresh design. Please note that this display cannot be used with MicroVGA-TEXT module, we sell it as an accessory for developers interested in evaluating various embedded device user interfaces.

Reference LCD driver implementation in C is available upon e-mail request.

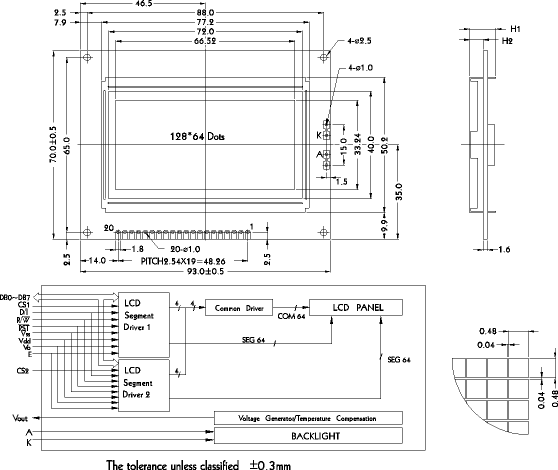

External display dimensions 93x70x15 mm
Pitch corner holes 88x64 mm
Display area 72 x 40 mm
Point size 0.48x0.48 mm
Connector located on the left side, right side pin 1, pin 20 on the left
LCD controller KS107, KS108B.
